X-Wing Double Button Holeshot Device – Complete System – HH-3511

What it does

A front holeshot device holds the front fork compressed at a set position on the starting gate. This keeps the front
end lower than normal ride height, which shifts weight forward, increases rear tyre load, and reduces the chance of a
wheelie on gate release. When the fork compresses past the latch point on the first bump, the device releases
automatically and the suspension returns to normal operation.

Double button system

The HH-3511 uses two latch positions instead of one. The upper button engages for concrete starts and dry slick dirt,
where the front end tends to come up more aggressively. The lower button engages for tacky conditions and metal grates,
where the tyre hooks up harder and the front stays lower naturally. You select the position before the race based on
track conditions -- no tools needed, adjustable at the gate.

Construction and design

The plunger uses a bullnose face design that contacts the fork leg without scratching the tube or stanchion. The device
body is curved and knurled to follow the fork guard profile and is secured with five screws that spread the load
across the plastic to prevent pull-out. A large latching groove ensures reliable engagement even in mud. The design is
fully rebuildable -- replacement parts are available from Tamer separately.

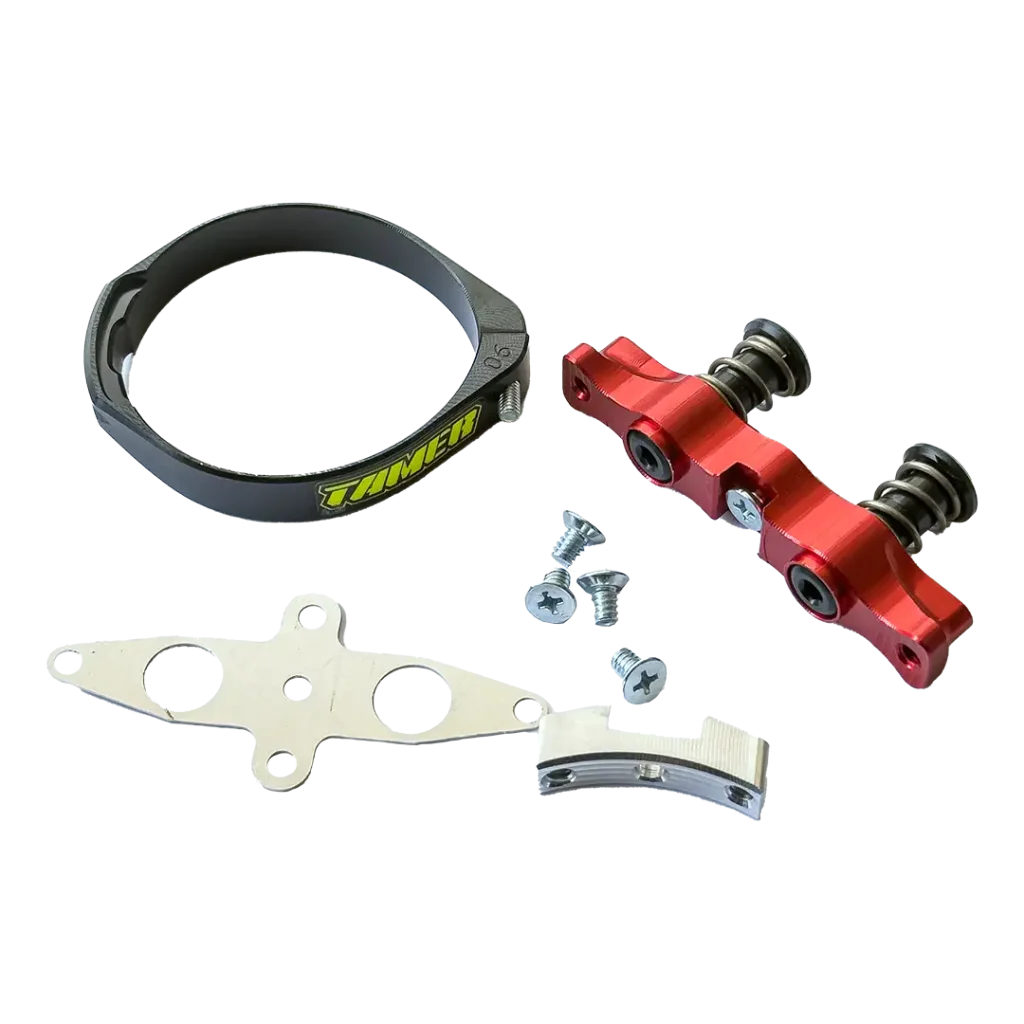

What is included

- Double button holeshot device with X-Wing bracket
- Metal drill template for mounting hole placement
- All mounting hardware (5-screw system)
