X-Wing Double Button Holeshot Device – Complete System – HH-2521 – More colors

What it does

A front holeshot device holds the front fork compressed at a set position on the starting gate. This keeps the front
end lower than normal ride height, shifts weight forward, increases rear tyre load, and reduces the chance of a wheelie
on gate release. When the fork compresses past the latch point on the first bump, the device releases automatically
and the suspension returns to normal.

Double button system

The HH-2521 uses two latch positions. The upper button engages for concrete starts and dry slick dirt, where the front
end tends to lift more aggressively. The lower button engages for tacky conditions and metal grates, where the tyre
hooks up harder and the front stays lower naturally. You select the position before the race based on track surface --
no tools, adjustable at the gate.

Construction and design

The plunger uses a bullnose face design that contacts the fork leg without scratching the tube or stanchion. The device
body is curved and knurled to follow the fork guard profile. Five screws secure it to the guard using the X-Wing load
distribution pattern, which spreads the mounting force across the plastic to prevent pull-out. A large latching groove
ensures reliable engagement in mud. The design is fully rebuildable - replacement parts are available separately from
Tamer.

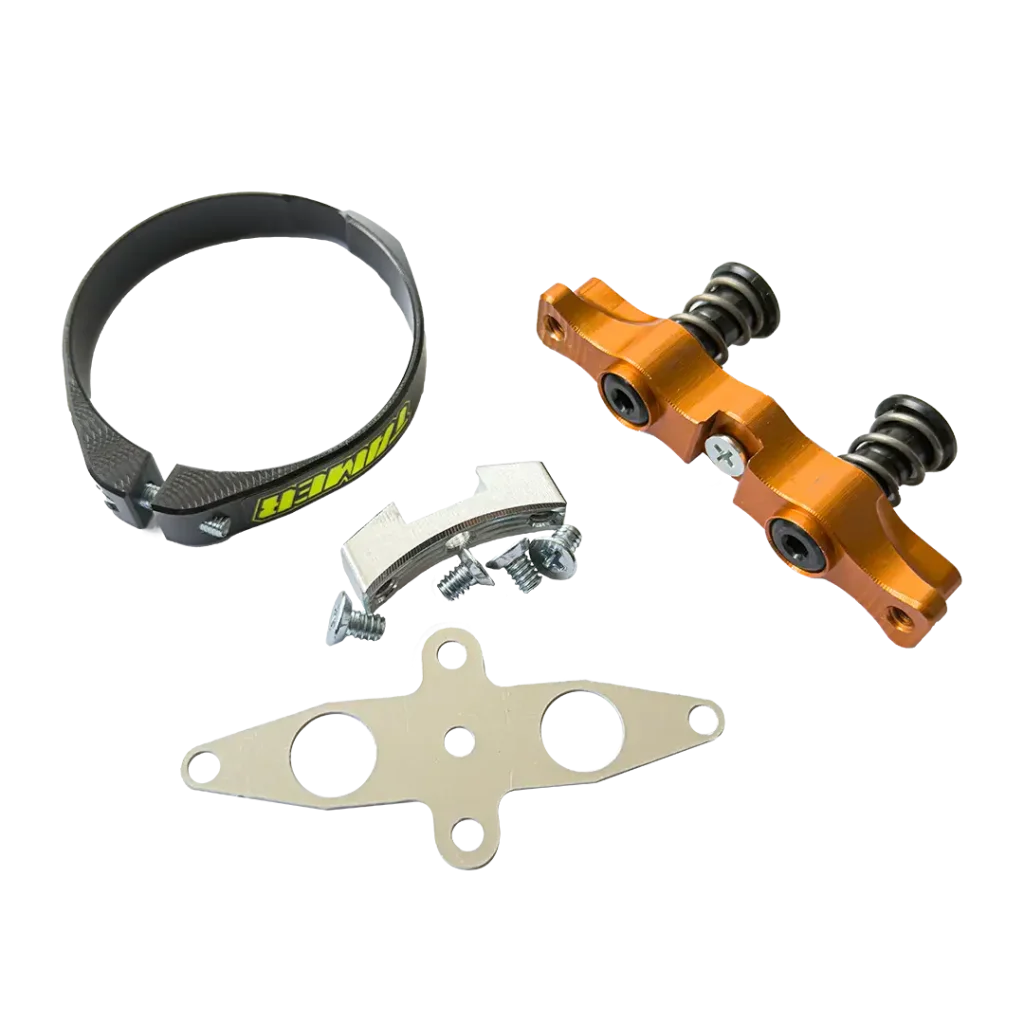

What is included

- Double button holeshot device with X-Wing bracket
- Metal drill template for mounting hole placement
- All mounting hardware (5-screw system)
